Features
1. Gearbox for motion transmission, hydraulically controlled vibration and steering, and 3 gears for fast travel between compaction sites.
2. Dual operator seats and steering wheels provide excellent vision when performing compaction near curbs.
3. Dongfeng-Cummins engine provides high power while consuming little oil. Meets high emission standards all the while offering excellent start-up performance.
4. Electrically controlled water spray to front and rear drum roller surface.

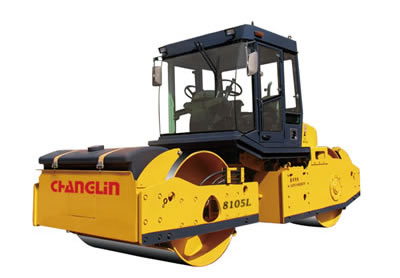

| Model | 8105L |
| Length×Width×Height(mm) | 5390×2060×2980 |
| Operating weight(Kg) | 10000 |
| Nominal Vibration Amplitude high/low(mm) | 0.35 |
| Frequency(HZ) | 50 |
| Centrifugal-Force high/low(KN) | 90 |
| Gradient capacity (%) | 20 |
| Wheel base(mm) | 3192 |
| Diesel engine | Cummins 4BT3.9-C80 |
| Rated output(KW) | 60 |
